Explore next-gen elastic drive belts

To improve engine efficiency, more OEMs are switching from polyester belts used in traditional ICE to elastic belts designed for next-generation front-end accessory drive (FEAD) systems. Due to their low-friction performance and better power transfer capabilities, elastic belts offer considerable fuel savings and improve vehicle range.

This approach also enables engine designers to remove several belt drive components, including alternator overrunning pulleys and auto-tensioners prone to wear that may lead to harsh noise and engine failure. In addition to design simplification, the shift to elastic V-belts provides cost savings.

Learn why advanced cord materials make power transmission systems more efficient

Our Stanyl® PA46 is an industry-leading aliphatic polyamide optimized for under-the-hood automotive components. The material’s inherent high stiffness and durability provides excellent wear and friction performance required for engine parts built to withstand extreme heat and torque levels.  In elastic belts, Stanyl PA46 offers 30 to 50% better stress retention performance compared to PA66. This allows OEMs to install the part under less tension, which reduces strain, improves noise, vibration and harshness (NVH) characteristics, increases fuel efficiency, and extends belt lifetimes.

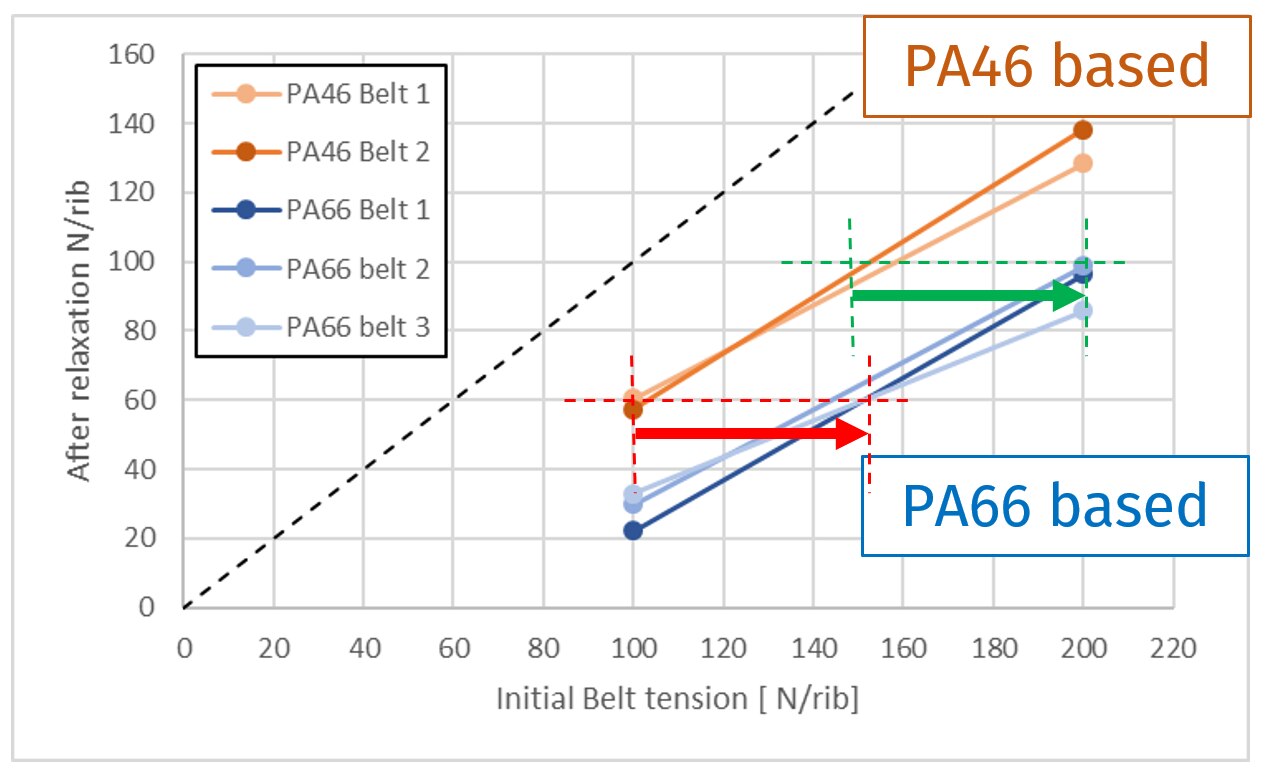

Stanyl® PA46 maintains better tension over time

  • To achieve the same belt tension after stress relaxation, a PA66 belt requires 50 N/rib higher pre-tension.
  • This creates higher bearing hub loads, bearing wear and friction.
  • Higher friction causes the PA66 belts to run hotter.
  • Hotter PA66 belts will decay even faster

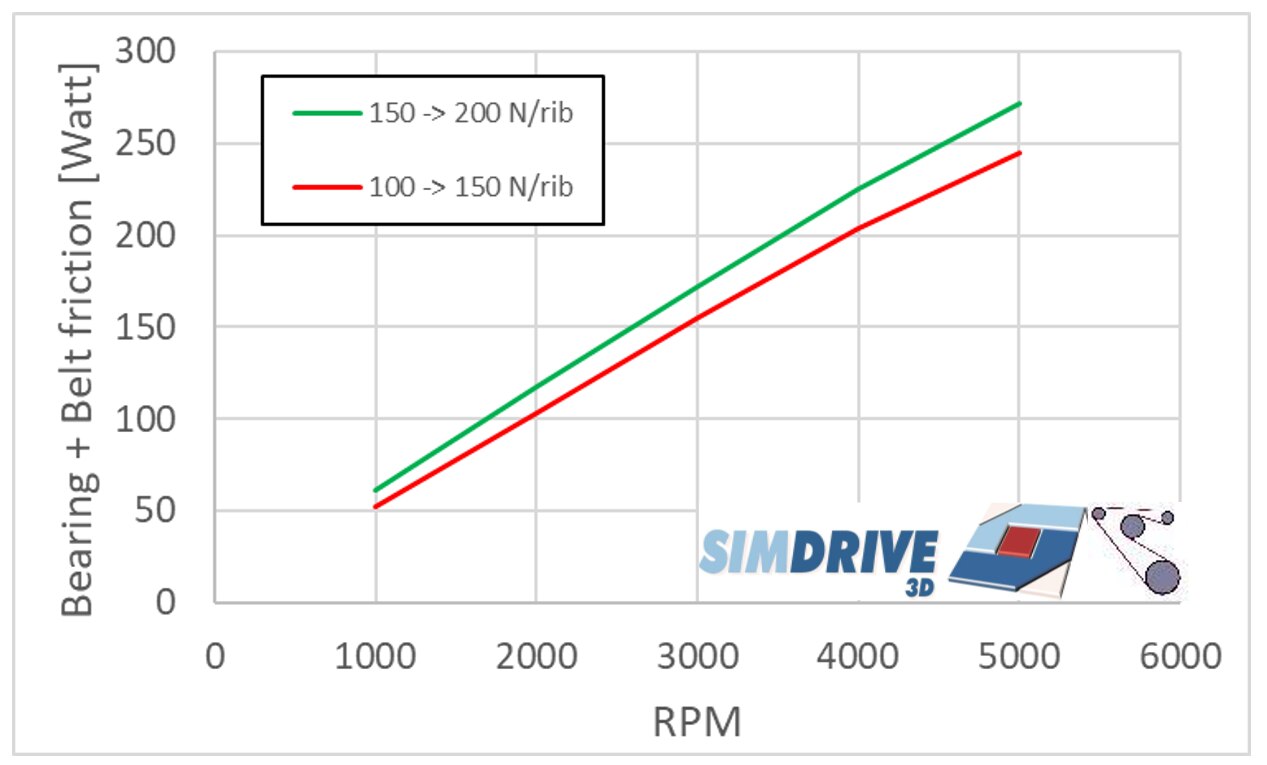

Stanyl® PA46 offers significantly improved efficiency vs. PA66•

  • ~100-Watt lower friction loss at 2,000 RPM
  • Around 0.5 Nm lower bearing & belt torque at 2,000 RPM
  • Improved fuel efficiency (1 gr/km lower CO2 emissions vs PA66)
  • 2 grams CO2/km (190€/car penalty in EU)
